01

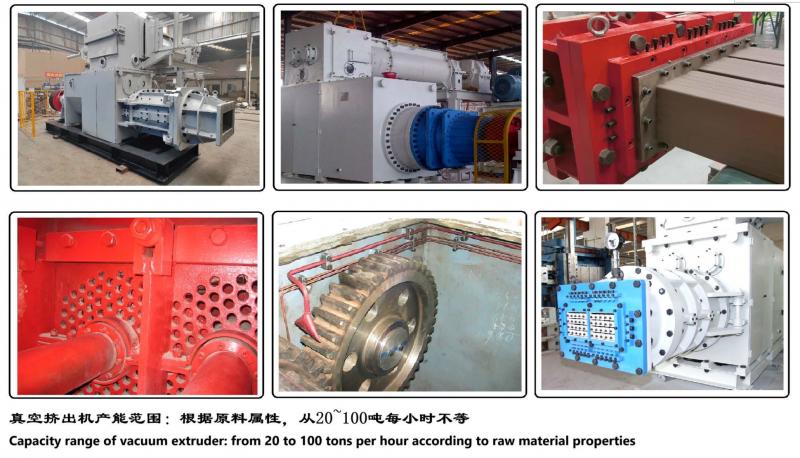

Semi stiff double stage vacuum extruder
Application Scope:
The high-performance vacuum series extruder is widely used in the building materials manufacturing industry for the extrusion forming of various types of high-end ceramics, cement products, and other wet-process building materials. This equipment boasts advanced functions, mature technology.

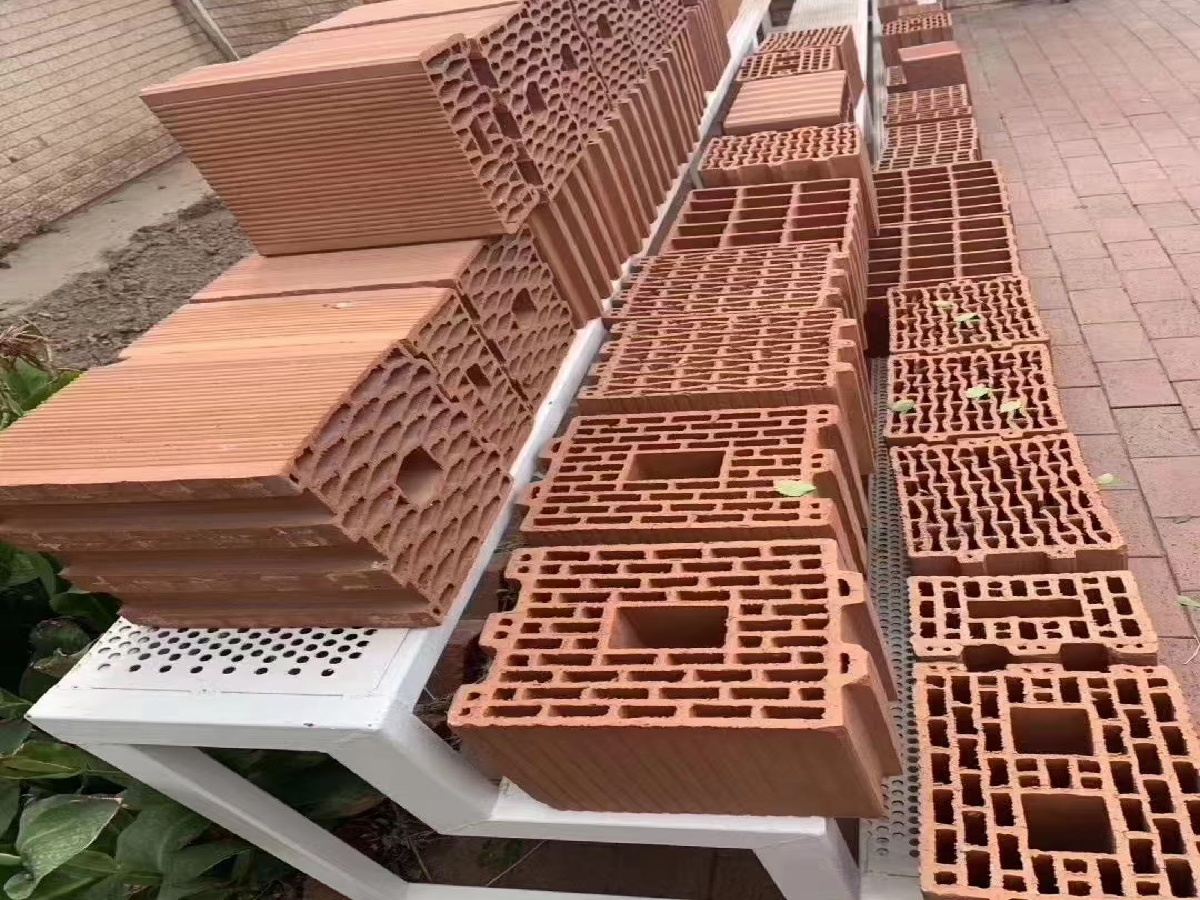

Brick Sample
Technical Parameters
Model |
Auger diameter mm |
Extrusion pressure Mpa |
Power KW |
Size M |
KLJ 40/40-S |
400 |
3 |
75+30 |
5.5*4.5*2.2 |
KLJ 45/45-S |
450 |
3 |
90+45 |
5.5*4.5*2.2 |
KLJ 55/45-S |
550/450 |
4 |
132+45 |
7*5.2*2.5 |
KLJ 55/50-S |
550/500 |
3.5 |
132+55 |
7*5.2*2.5 |
KLJ 55/55-S |
550 |
3 |
160+55 |
7*5.2*2.5 |
KLJ 60/60-S |
600 |
3 |
185+75 |
7*5.2*2.7 |
KLJ 750-S |
750 |
3 |
250+90 |
7*5.8*3 |
