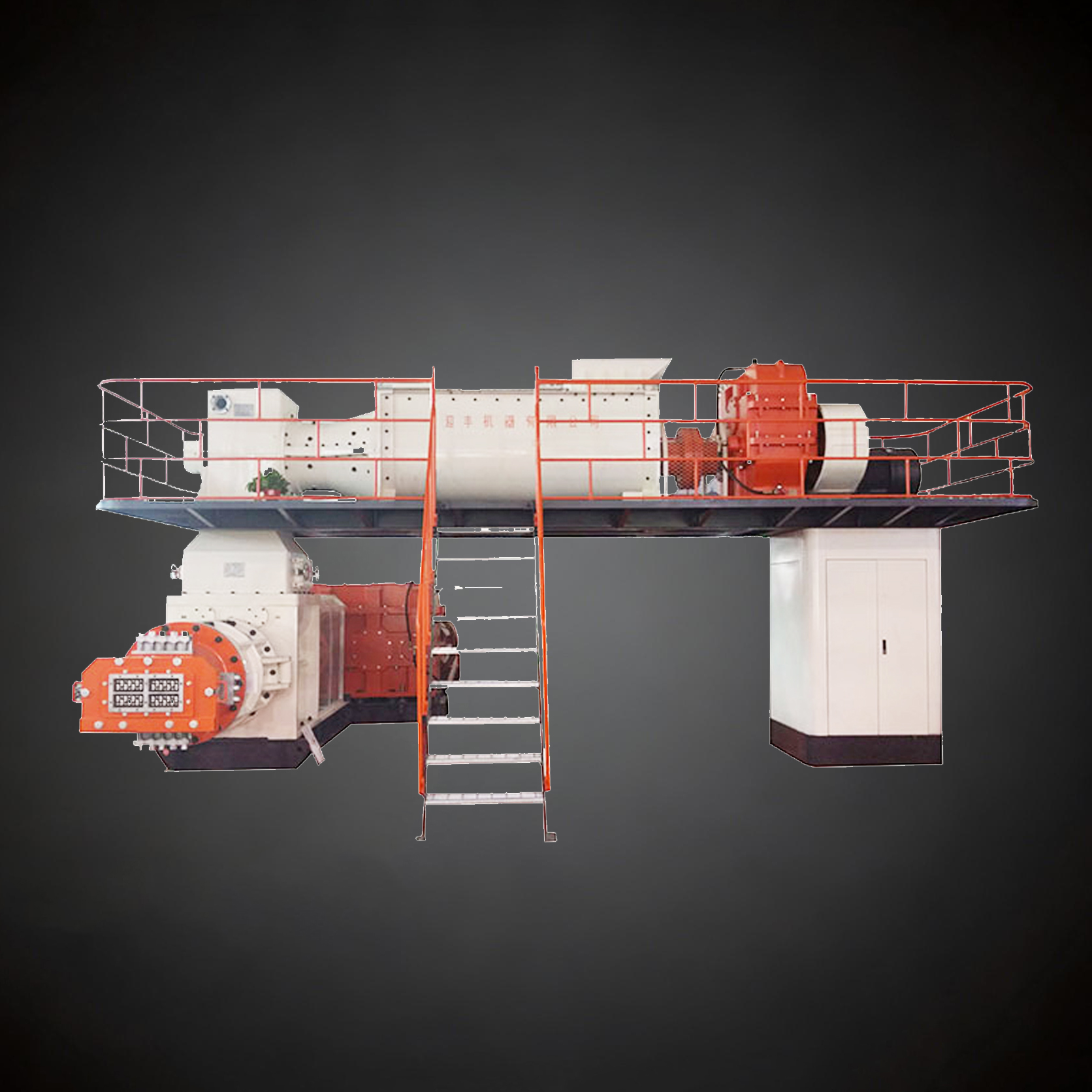

JKY red clay brick making manufacturing machine
Advantages:
1. Strong applicability,high efficiency;
2. High productivity;
3. Labor saving;
4. Suitable for various materials.
Product Parts
Alloy brick mould
Alloy hollow brick mould
Alloy mixer blades
Auger
Thrust bearing
Reducer
Auger adopts high chromium raw materials,the auger front part can produce 20 million bricks,the auger back part can produce 40 million bricks one time.
High load capacity to admit any pressure from soft to stiff extrusion condition.
Reducers with parallel shafts,case hardened and ground helical gears to ensure secure,progressive transmission and quiet operation and long durability.
Different types of augers are available to adapt for varying clay requirements and shaping conditions:
1. Highly wear resistant chromium alloy
2. Steel alloys with chromium or tungsten carbides resurfacing
3. Steel alloy
The whole Magnabloc extruder range offers alternatives for cylindrical,conical or extra-conical auger configurations to better adapt for any product need,type of clay and shaping requirements.
Clay Brick Sample
Click Here To See More Clay Red Brick Making Machine
Technical Parameters
Model |
Capacity Up to |
Auger diameter |
Extruding pressure |
Production Line Power ( KW) |
Molding moisture content |
JKY45 |
32.5 |
450 |
4 |
45/110 |
14~16% |
JKY50 |
40 |
500 |
4 |
75/160 |
14~16% |
JKY55 |
45 |
550 |
4 |
75/200 |
14~16% |
JKY60 |
50 |
600 |
4 |
110/280 |
14~16% |
JKY75 |
70 |
700 |
4 |
160/355 |
14~16% |
1. From the extruder, how much moisture does the brick contain is better?
Less than 18%,At most not more than 22%
2.If the red soil contains stone, such soil can be used to make bricks?
No,the stone must be removed, otherwise the machine will accelerate wear and tear, or even damage to the machine. Generally based on the size of stone, you can choose the following machines: stone removing roller machine, roller sieve, thrust sieve.
3.What types of brick machine can your company produce?
Our company produces non-vacuum brick extruder, single-stage vacuum brick extruder, compact two-stage vacuum brick extruder, split two-stage vacuum extruder. Customers can choose according to their own needs. You can download our brick machine details and price list on our website: www.yfbrickmachine.com
4. What's the differences between Split Double stage vacuum extruder and compact double stage vacuum extruder?
Split Double stage vacuum extruder is composed of mixing part, extruding part, and vacuum system. The above mixing stage is to add and mix raw material; the lower stage is for conveying, squeezing, extruding; Such extruder takes two motors , or we can say each stage takes one motor, such extruder is called split double stage vacuum extruder.
Compared with compact double stage vacuum extruder, it has more vacuum pressure, with less adobe moisture, perfect for hollow bricks production,but with higher electricity consumption due to working with two motors.
